Precision Aluminum Tubes & Pipes
Seamless and welded aluminum tube / pipe, OD Ø6–Ø75 mm, wall 0.5–5.0 mm
View details →Aluminum Bars & Rods (Round Bar)
Extruded and cold-drawn aluminum rod and bar, round Ø6–Ø300 mm, square and hexagon available
Overview

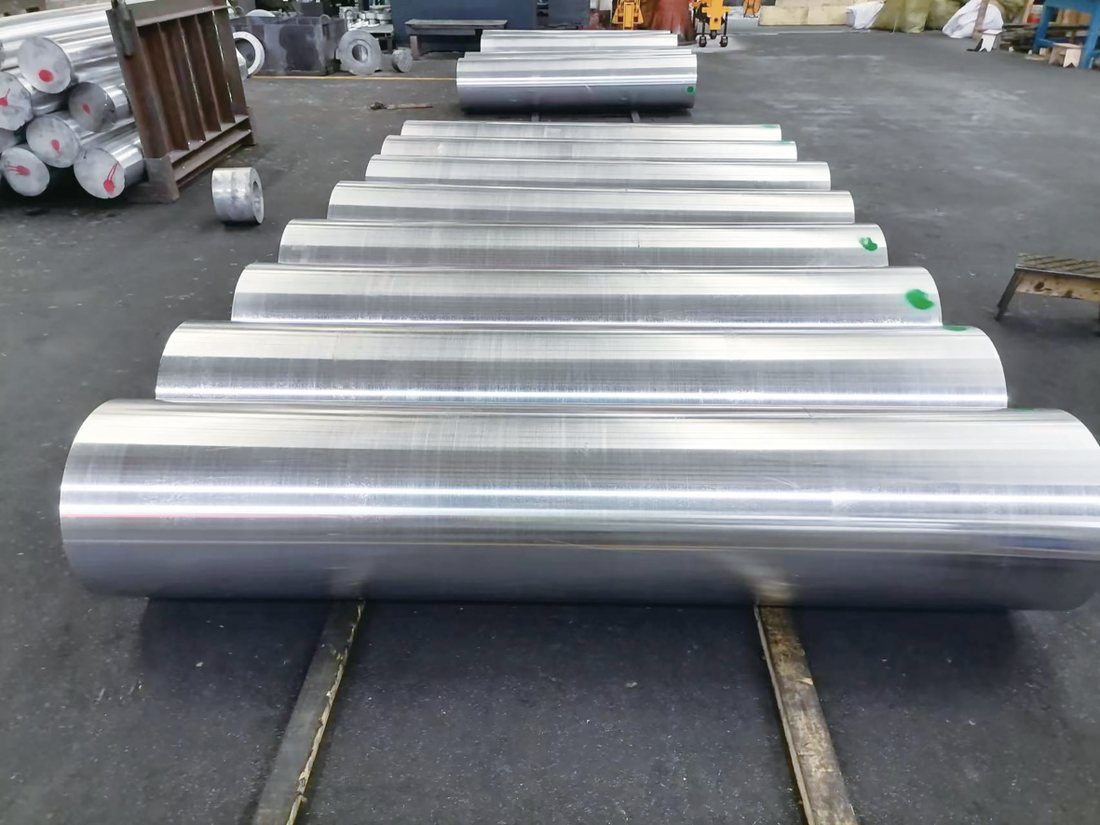

Aluminum Bars & Rods (Round Bar)
Extruded and cold-drawn aluminum rod and bar: round aluminum rod Ø6–Ø300 mm plus square, hexagonal and special sections, normally in 6061-T6/T6511, 6063-T5 and 1060 with 80–310 MPa tensile, accepted to ASTM B221M and GB/T 3191. Cut to length, turned and ground finishes suit CNC machining, structural supports, conveyor systems and fixtures. Dimensional tolerance follows the ordered standard, cut-to-size rod and bar starts from a single length, regular stock ships in 3–7 days and a mill test certificate accompanies every lot. High-strength grades are quoted separately within their available diameter.
Available specifications
Available specifications
| Alloy | Temper | Tensile strength (typical) | Available sizes | Standard |
|---|---|---|---|---|
| 6061-T6511 | T6511 | 310 MPa | Round Ø6–Ø300 mm, cut lengths ≤6000 mm | ASTM B221M · GB/T 3191 |
| 6063-T5 | T5 | 200 MPa | Round Ø5–Ø200 mm, square and hexagon | ASTM B221M · GB/T 3191 |
| 1060-H112 | H112 | 80 MPa | Round Ø10–Ø250 mm | GB/T 3191 |
| 7075-T6511 | T6511 | 570 MPa | Round Ø10–Ø70 mm, cut lengths ≤3000 mm | ASTM B221M · GB/T 3191 |
| 2A12-T4 | T4 | 470 MPa | Round Ø12–Ø70 mm, cut lengths ≤3000 mm | ASTM B221M · GB/T 3191 |
Mechanical values are typical at 20 ℃ and confirmed by the mill certificate shipped with the goods; sizes are adjustable against your technical agreement. Standards and acceptance criteria follow the order technical agreement. High-strength grades are quoted within the available range — contact us for requirements outside it.
Features
Features
- Round aluminum rod Ø6–Ø300 mm with square and hexagon on the same order
- T6511 stress-relieved temper for stable machining
- Cut to length with chamfered ends
- High-strength grades quoted within the available diameter range
- Cold-finished rod: tolerance and straightness to the ordered standard
Typical applications
Typical applications
CNC precision parts, structural supports and conveyors, fixtures and tooling, hydraulic and pneumatic components, automotive parts.
Inquire about this product
Helpful when enquiring: alloy / temper, sizes (thickness, OD, wall, length), quantity, application or drawing, destination and trade term.
Helpful when enquiring: alloy / temper, sizes (thickness, OD, wall, length), quantity, application or drawing, destination and trade term.
Product and workshop
Product and workshop
Inquire about this product
Inquire about this product
Send your requirement or email us directly; we will come back with available specifications and lead time.
- Email
2717141084@qq.com - Phone
+86 13142344725 - WhatsApp
+86 13142344725
