Overview
Special-Section & Stepped Tube (Profile Pipe)
Custom square, rectangular, multi-cavity, stepped and special extruded tube to drawing, normally within a Ø250 mm circumscribed circle and up to 6000 mm long, accepted to GB/T 6892 and ASTM B221. Section feasibility, wall uniformity and machining allowance are confirmed before tooling; drilling, tapping and anodising can be included.
Available specifications
Available specifications
| Alloy | Temper | Tensile strength (typical) | Available sizes | Standard |
|---|---|---|---|---|
| 6061-T6 | T6 | 310 MPa | Section circumscribed circle ≤Ø250 mm × length ≤6000 mm | GB/T 6892 · ASTM B221 |
| 6063-T5 | T5 | 200 MPa | Section circumscribed circle ≤Ø250 mm × length ≤6000 mm | GB/T 6892 · ASTM B221 |
| 6005A-T6 | T6 | 260 MPa | Section circumscribed circle ≤Ø250 mm × length ≤6000 mm | GB/T 6892 · EN 755 |
Mechanical values are typical at 20 ℃ and confirmed by the mill certificate shipped with the goods; sizes are adjustable against your technical agreement. Standards and acceptance criteria follow the order technical agreement.
Features
Features
- Tooling only after section feasibility is confirmed
- Stepped and variable-section tube formed in one pass
- Wall uniformity tightened to suit the application
- Can ship combined with downstream CNC work
Typical applications
Typical applications
Rail interiors and handrails, door and curtain-wall components, cooling and heat-exchange sections, special machine structures.
Inquire about this product
Helpful when enquiring: alloy / temper, sizes (thickness, OD, wall, length), quantity, application or drawing, destination and trade term.
Helpful when enquiring: alloy / temper, sizes (thickness, OD, wall, length), quantity, application or drawing, destination and trade term.

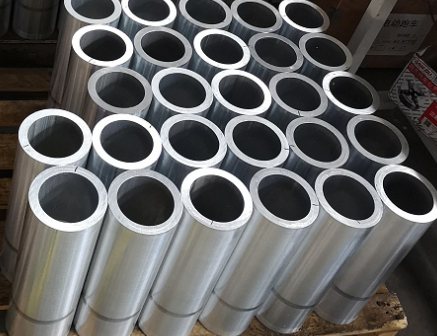

Product and workshop
Product and workshop
Inquire about this product
Inquire about this product
Send your requirement or email us directly; we will come back with available specifications and lead time.
