Overview
Thick-Wall & Structural Tube (Heavy-Wall Pipe)
Thick-wall tube for pressure cylinders, structural sleeves and ring blanks, supplied in 6061-T6/T651, 6082-T6 and 6063-T5 with OD Ø50–Ø400 mm and wall 5–60 mm, to GB/T 6893, ASTM B241 and EN 755. Boring, end machining and NDT support are available, delivered with allowance to finished size.
Available specifications
Available specifications
| Alloy | Temper | Tensile strength (typical) | Available sizes | Standard |
|---|---|---|---|---|
| 6061-T6 / T651 | T6 / T651 | 310 MPa | OD Ø50–Ø400 mm × wall 5–60 mm | GB/T 6893 · ASTM B241 |
| 6082-T6 | T6 | 310 MPa | OD Ø60–Ø350 mm × wall 8–50 mm | GB/T 6893 · EN 755 |
| 6063-T5 | T5 | 200 MPa | OD Ø50–Ø250 mm × wall 5–40 mm | GB/T 6893 · ASTM B241 |
Mechanical values are typical at 20 ℃ and confirmed by the mill certificate shipped with the goods; sizes are adjustable against your technical agreement. Standards and acceptance criteria follow the order technical agreement.
Features
Features
- Stable supply of large-OD thick-wall tube in regular grades
- Bored ID with good straightness and coaxiality
- Delivered with allowance to finished size
- NDT and dimensional records available
Typical applications
Typical applications
Hydraulic and pneumatic cylinders, bearing and spacer sleeves, ring blanks, extruder and moulding machine parts, structural connectors.
Inquire about this product
Helpful when enquiring: alloy / temper, sizes (thickness, OD, wall, length), quantity, application or drawing, destination and trade term.
Helpful when enquiring: alloy / temper, sizes (thickness, OD, wall, length), quantity, application or drawing, destination and trade term.

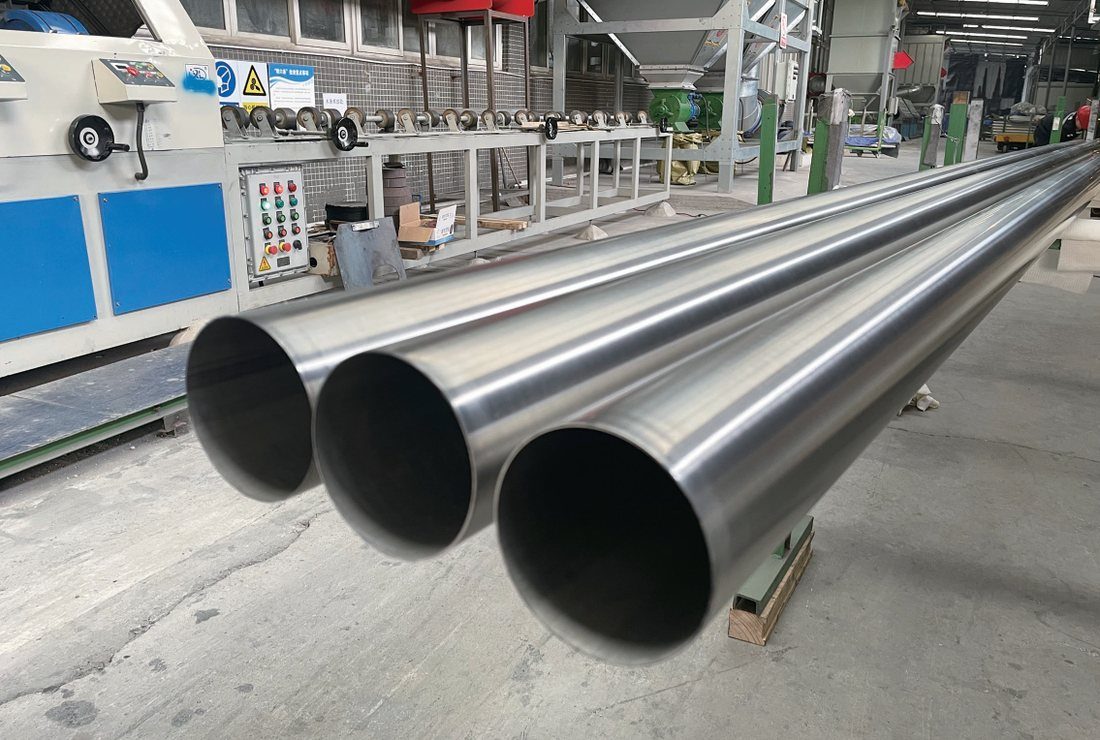

Product and workshop
Product and workshop
Inquire about this product
Inquire about this product
Send your requirement or email us directly; we will come back with available specifications and lead time.
